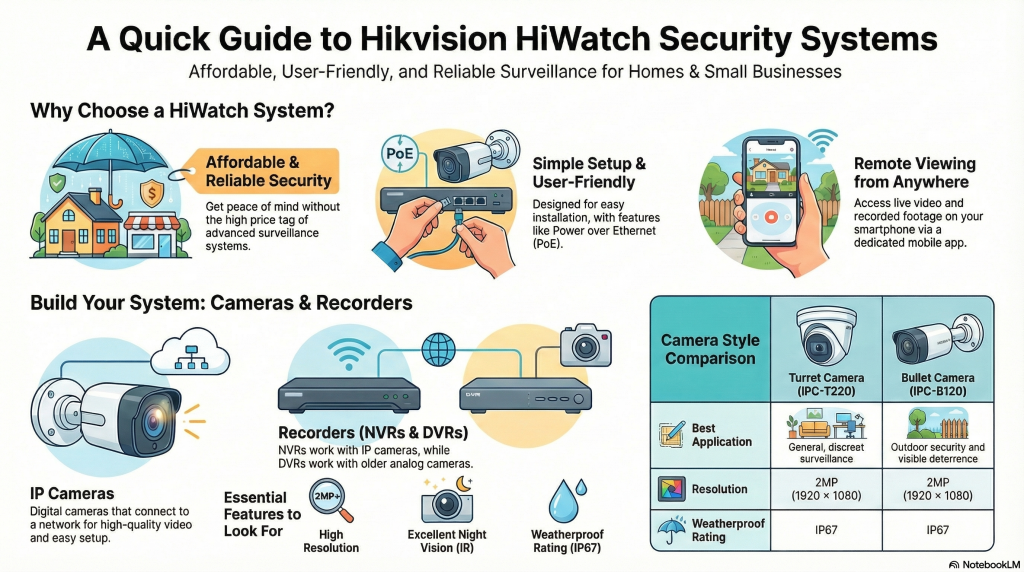

The Hikvision HiWatch series represents a line of cost-effective and user-friendly security solutions designed primarily for residential and small business applications. These systems typically include a range of products such as IP cameras, DVRs (Digital Video Recorders), NVRs (Network Video Recorders), and related accessories. HiWatch aims to provide reliable surveillance capabilities without the complexity or high price tag associated with more advanced systems, making it an accessible option for users with basic security needs.

The HiWatch series offers several benefits including easy installation, remote viewing capabilities via mobile apps, and basic video analytics. These systems are well-suited for monitoring homes, small shops, offices, and other similar environments. The ability to remotely access live video feeds and recorded footage provides peace of mind and allows users to stay connected to their property from anywhere. Furthermore, the affordability of HiWatch makes it a practical choice for budget-conscious individuals and businesses seeking to enhance their security posture.
Hikvision is a globally recognized leader in video surveillance technology, known for its innovation and quality. Locksmith For London understands the importance of reliable security solutions for our clients. By offering Hikvision’s HiWatch series, we provide our customers with a trusted and affordable option to protect their homes and businesses. We can assist with the selection, installation, and maintenance of HiWatch systems, ensuring optimal performance and peace of mind for our valued customers in London.
HiWatch IPC-T220
The HiWatch IPC-T220 is a 2MP turret IP camera designed for indoor or outdoor use. Its robust construction and weather-resistant housing make it suitable for a variety of environments. This camera delivers clear and detailed video footage, enabling effective surveillance and monitoring. It’s a popular choice for residential and small commercial applications where a balance of performance and affordability is desired. The IPC-T220 is easy to install and configure, making it an ideal option for users who want a simple and reliable security solution.
Key Features
Technical Specifications
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Resolution | 1920 × 1080 |
| Lens | 2.8mm |
| Field of View | Horizontal: 114.8°, Vertical: 62°, Diagonal: 135.5° |
| IR Range | Up to 30m |
| Weatherproof Rating | IP67 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Frame Rate | 25fps (1920 × 1080, 1280 × 720) |
| Ethernet | RJ45 (10/100M) |
| Power Supply | 12 VDC ± 25%/PoE (802.3af) |
| Power Consumption | Max. 5.5W |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) |
HiWatch IPC-B120
The HiWatch IPC-B120 is a bullet-style IP camera designed for outdoor surveillance. Its rugged housing and IR illumination make it suitable for monitoring areas with varying lighting conditions. This camera provides reliable performance and clear video quality, making it a practical choice for both residential and commercial security applications. The bullet design offers a deterrent effect and allows for easy mounting on walls or ceilings. The IPC-B120 is a cost-effective solution for enhancing security and deterring potential threats.
Key Features
Technical Specifications
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Resolution | 1920 x 1080 |
| Lens | 2.8 mm, fixed |
| Field of View | Horizontal: 114.8°, Vertical: 62°, Diagonal: 135.5° |
| IR Range | Up to 30 m |
| Weatherproof Rating | IP67 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Frame Rate | 25fps (1920 × 1080) |
| Ethernet | RJ45 (10/100 Mbps) |
| Power Supply | 12 VDC ± 25% / PoE (802.3af) |
| Power Consumption | Max. 5.5 W |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F) |
HiWatch DVR-204Q-K1
The HiWatch DVR-204Q-K1 is a 4-channel digital video recorder (DVR) designed for use with analog cameras. It supports multiple video input formats, including HD-TVI, AHD, CVI, and CVBS, providing flexibility in camera selection. This DVR is capable of recording high-quality video and offers various recording modes to suit different security needs. Its user-friendly interface and remote access capabilities make it an excellent choice for small businesses and residential applications. The DVR-204Q-K1 provides a reliable and cost-effective solution for managing and storing surveillance footage.
Key Features
Technical Specifications
| Video Input | 4 channels |
| Video Output | 1 HDMI, 1 VGA |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Recording Resolution | 1080p Lite/720p/VGA/WD1/4CIF/CIF |
| Storage | 1 SATA interface, up to 6 TB capacity |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet interface |
| USB Interface | 2 × USB 2.0 |
| Power Supply | 12 VDC |
| Power Consumption | ≤ 8 W (without HDD) |
| Operating Temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Dimensions | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
| Weight | ≤ 1.1 kg (2.4 lb) (without HDD) |
HiWatch DS-I114 (C)
The HiWatch DS-I114 (C) is a 1MP IR Fixed Bullet Camera designed for indoor and outdoor surveillance. It offers basic but reliable video monitoring capabilities, ideal for users on a tight budget. This camera features IR illumination for night vision and is housed in a weatherproof enclosure for outdoor use. The DS-I114 (C) is a simple and straightforward solution for enhancing security in residential or small commercial settings. Its ease of installation and operation makes it a popular choice for those new to video surveillance.
Key Features
Technical Specifications
| Image Sensor | 1 MP CMOS |
| Resolution | 1280 × 720 |
| Lens | 2.8 mm |
| Field of View | Horizontal: 92°, Vertical: 48°, Diagonal: 111° |
| IR Range | Up to 20 m |
| Weatherproof Rating | IP66 |
| Video Output | TVI/AHD/CVI/CVBS |
| Frame Rate | 720p @ 25fps/30fps |
| Power Supply | 12 VDC ± 15% |
| Power Consumption | Max. 4 W |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F) |
| Dimensions | 70 mm × 149.5 mm (2.8″ × 5.9″) |
HiWatch NVR-104MH-C/4P
The HiWatch NVR-104MH-C/4P is a 4-channel network video recorder (NVR) with built-in PoE (Power over Ethernet) ports. This NVR is designed to work with IP cameras, providing a comprehensive solution for video surveillance. The PoE ports simplify installation by allowing cameras to be powered directly through the network cable. The NVR-104MH-C/4P supports high-resolution recording and offers remote access capabilities, making it a suitable choice for small to medium-sized businesses and residential applications. It is a reliable and user-friendly solution for managing and storing IP camera footage.
Key Features
Technical Specifications
| IP Video Input | 4 channels |
| PoE Ports | 4 |
| Video Output | 1 HDMI, 1 VGA |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | Up to 4 MP |
| Storage | 1 SATA interface, up to 6 TB capacity |
| Network Interface | 1 RJ45 10/100 Mbps self-adaptive Ethernet interface |
| USB Interface | 2 × USB 2.0 |
| Power Supply | 48 VDC |
| Power Consumption | ≤ 50 W |
| Operating Temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Dimensions | 260 × 225 × 48 mm (10.2″ × 8.9″ × 1.9″) |
Product Comparison
Compare all models to find the right equipment for your needs.
| Specification | IPC-T220 | IPC-B120 | DVR-204Q-K1 | DS-I114 (C) | NVR-104MH-C/4P |
|---|---|---|---|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS | 1/2.8″ Progressive Scan CMOS | N/A | 1 MP CMOS | N/A |
| Resolution | 1920 × 1080 (2MP) | 1920 x 1080 (2MP) | 1080p Lite | 1280 × 720 (1MP) | Up to 4 MP |
| Lens | 2.8mm Fixed | 2.8 mm, fixed | N/A | 2.8 mm | N/A |
| IR Range | Up to 30m | Up to 30 m | N/A | Up to 20 m | N/A |
| Weatherproof Rating | IP67 | IP67 | N/A | IP66 | N/A |
| Video Compression | H.265+/H.265/H.264+/H.264 | H.265+/H.265/H.264+/H.264 | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | N/A | H.265+/H.265/H.264+/H.264 |
| Ethernet | RJ45 (10/100M) | RJ45 (10/100 Mbps) | RJ45 10M/100M | N/A | RJ45 10/100 Mbps |
| Power Supply | 12 VDC/PoE | 12 VDC / PoE | 12 VDC | 12 VDC | 48 VDC |
| Channels | N/A | N/A | 4 | N/A | 4 |
| PoE Support | Yes (Optional) | Yes (Optional) | No | No | Yes (4 Ports) |
| Storage Capacity | N/A | N/A | Up to 6TB | N/A | Up to 6TB |
| Best Application | General Surveillance | Outdoor Security | Analog Camera System | Budget-Friendly Surveillance | IP Camera System |
Frequently Asked Questions
What is the HiWatch series by Hikvision?
The HiWatch series is a line of security products by Hikvision, designed to offer cost-effective and user-friendly surveillance solutions. It typically includes IP cameras, DVRs, and NVRs tailored for residential and small business applications, providing basic security features at an affordable price point. These systems are known for their ease of installation and remote viewing capabilities.
What are the main differences between IP cameras and DVRs/NVRs in the HiWatch series?
IP cameras are standalone cameras that transmit video data over a network, while DVRs (Digital Video Recorders) and NVRs (Network Video Recorders) are recording devices. DVRs are used with analog cameras, converting the analog signal to digital for storage. NVRs, on the other hand, are used with IP cameras and record digital video streams directly from the network.
How do I access my HiWatch security system remotely?
HiWatch systems typically offer remote access through a dedicated mobile app or web interface. You can download the app to your smartphone or tablet and configure it using the device’s serial number or QR code. Once configured, you can view live video feeds, access recorded footage, and receive alerts from anywhere with an internet connection.
What is the significance of the IP67 weatherproof rating in HiWatch cameras?
The IP67 rating indicates that the camera is fully protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. This makes cameras with an IP67 rating suitable for outdoor use in various weather conditions, ensuring reliable performance even in harsh environments like rain, snow, or dusty areas.
What is H.265+ compression and how does it benefit HiWatch users?
H.265+ is an advanced video compression technology that reduces bandwidth and storage requirements without significantly compromising video quality. This allows users to store more video footage on their recording devices and transmit video data more efficiently over the network, saving on storage costs and bandwidth usage, while maintaining acceptable video clarity.
Can I integrate HiWatch products with other security systems or devices?
HiWatch products are generally designed to work within their own ecosystem, but some models may offer limited integration capabilities with other systems. It’s essential to check the specifications of each product to determine its compatibility with third-party devices or systems. For seamless integration, it is often recommended to use products within the HiWatch or Hikvision ecosystem.
